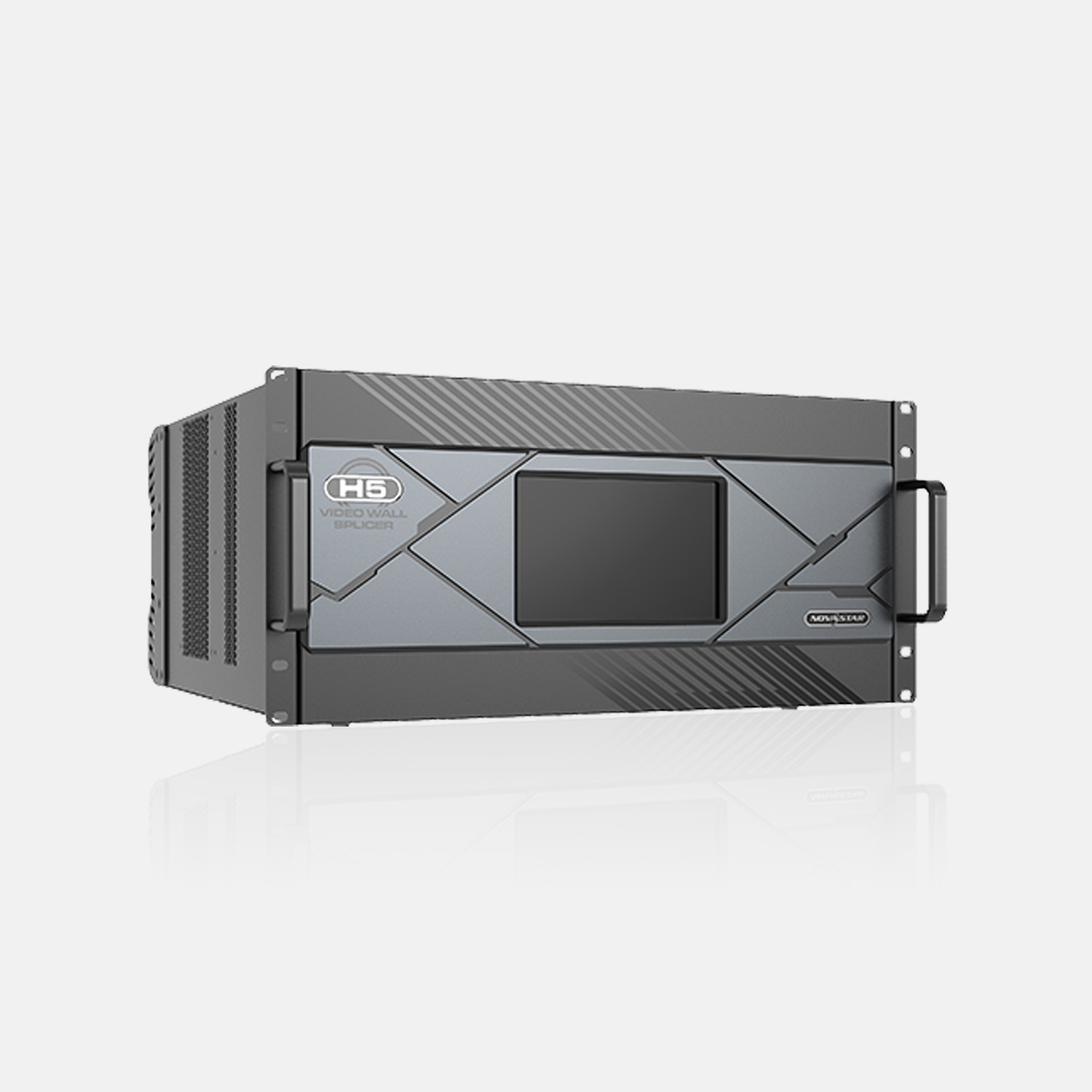

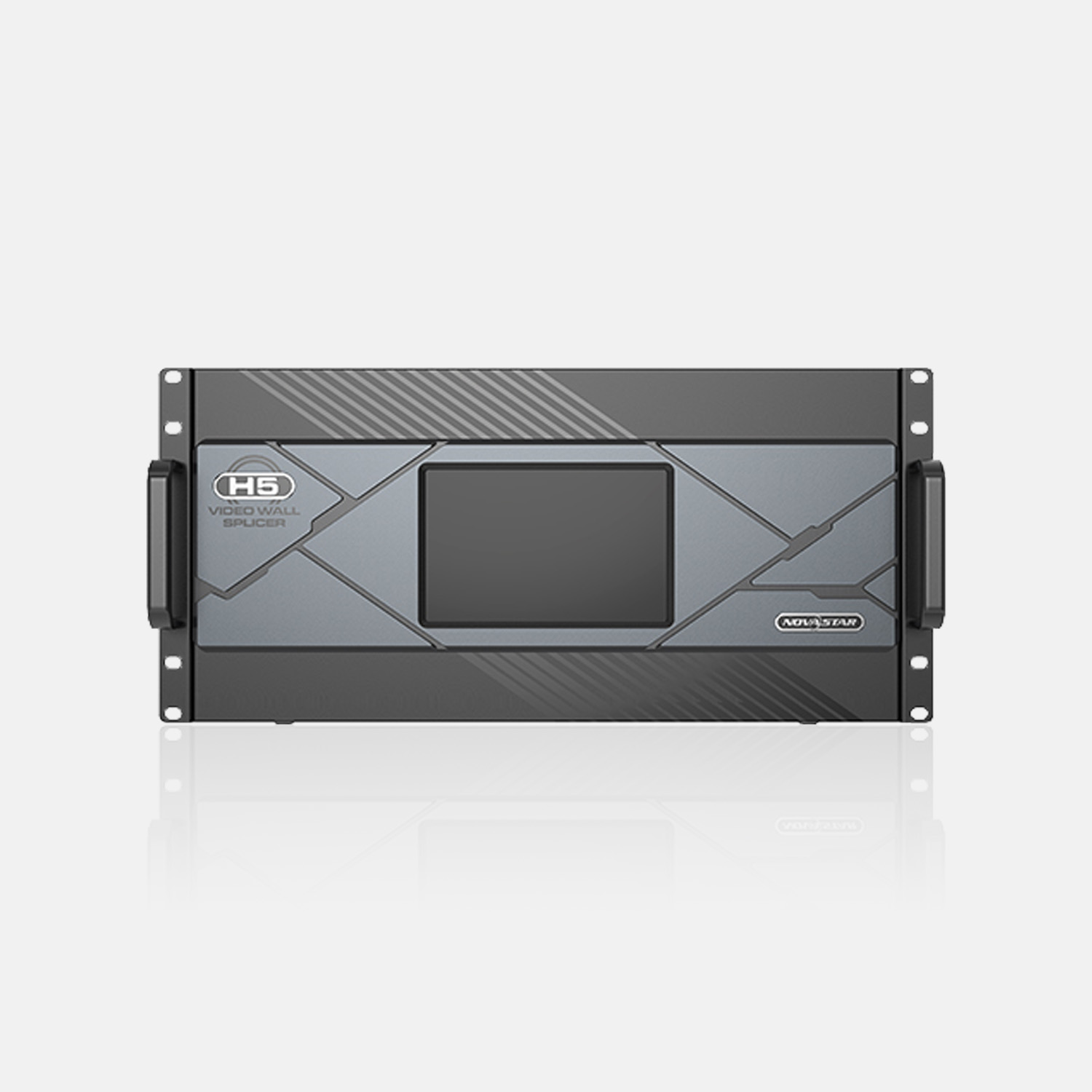

Novastar H5 Series LED Video Processor

The Novastar H5 Series LED Video Processor is an all-in-one solution designed for fine-pitch LED applications. It integrates video splicing and display control, offering true 4K resolution and unmatched flexibility. With support for up to 16 layers per output, users can easily create stunning visuals. This processor ensures high-quality image processing, reducing equipment failure rates while enhancing operational efficiency. Ideal for large-scale events, stage displays, and installations, the Novastar H5 Series guarantees a seamless and powerful performance.

Contact Us

SKU: Novastar H5 Series LED Video Processor Category:

Transform Your Visuals with the Novastar H5 Series LED Video Processor

The Novastar H5 Series stands out as an all-in-one video splicing processor. It combines both video splicing and display control into one unit, designed specifically for fine-pitch LED applications. This processor brings revolutionary advancements in image processing technology, offering exceptional visual effects. As a result, the LED Video Processor serves as the perfect solution for high-end LED applications.

Key Benefits of the Novastar H5 Series

  • Streamlined Integration: The LED Video Processor integrates splice processing and display control into a single system. By doing so, it simplifies system integration and reduces equipment failure rates. Additionally, this integration boosts operational efficiency and lowers maintenance requirements. Therefore, users experience a smoother and more reliable setup.
  • Unlimited Flexibility: The LED Video Processor allows users to unlock creative possibilities. It supports up to 16 layers per output daughterboard, providing unparalleled flexibility in how layers are arranged, overlapped, and scaled. Consequently, you can fully customize your visuals to suit your specific needs.
  • True 4K Display: With the LED Video Processor, you achieve true 4K resolution (4K x 2K@60Hz) with RGB 4:4:4 and 10-bit color depth. This processor displays every pixel with extraordinary clarity and precision. It ensures your content looks stunning with improved contrast, brightness, and a wide color range. As a result, your audience will enjoy vibrant, lifelike visuals.

Versatility in Applications

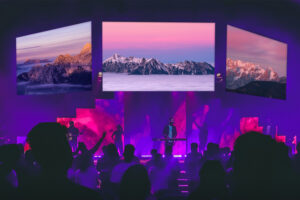

The Novastar H5 Series excels in high-end, fine-pitch LED applications. It is ideal for large-scale events, stage displays, and corporate installations. Whether you’re working with rental systems or permanent installations, this processor meets your needs with ease. It is the perfect choice for companies and event organizers requiring smooth, high-resolution video processing.

Why Choose the Novastar H5 Series?

The Novastar H5 Series delivers industry-leading performance and features. With its advanced processing, true 4K resolution, and flexible layer management, it sets a new standard for LED video displays. Whether you’re creating a stunning stage display or managing a major event, the LED Video Processor ensures excellent quality and reliability. It offers both creativity and performance, making it the ideal choice for professionals in the LED video industry.

Specification

Model H5
Rack Unit 5U
Max. Loading Capacity
(H_20xRJ45 sending card)
39 million pixels
Max. Loading Capacity
(H_4xfiber sending card)
62.4 million pixels
Max.Output Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector)
Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port)
Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
Max. Input Cards 10
Max. Output Cards 3
Max. Layers 16 layers per card
Max. Presets 2000 (Preset playlist playback supported)
10bit and HDR
Input and Output Monitoring
(H_2xRJ45+1xHDMI1.3
preview card required)

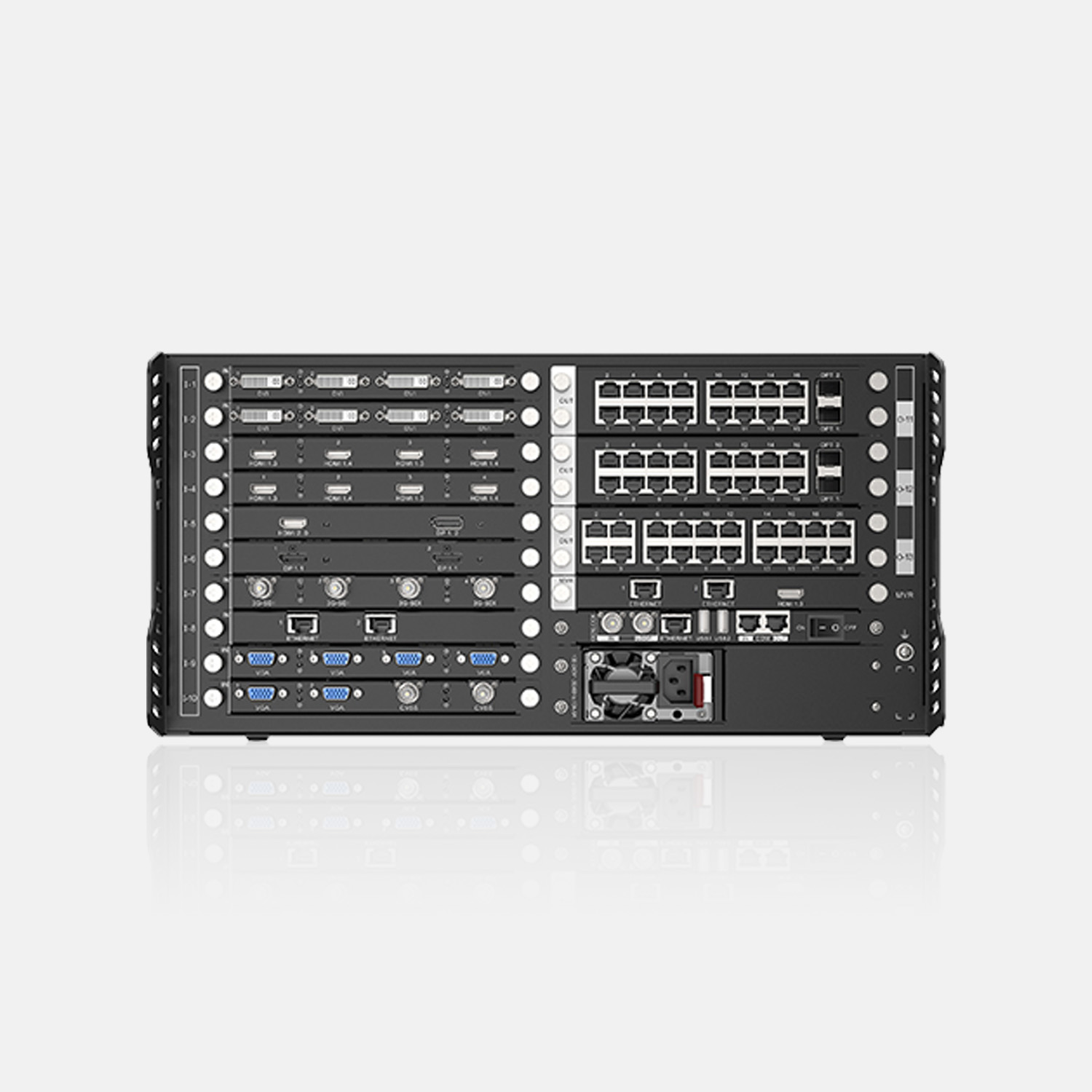

Optional Input and Output Cards
Optional Input Cards Input Card Connectors and Qty
H_4 x DVI input card 4x DVI
H_4 x HDMI input card 2x HDMI 1.3 + 2x HDMI 1.4
H_2 x HDMI 2.0 + 2x DP 1.2 input card 2x HDMI 2.0 + 2x DP 1.2
(This card can be installed into the slots from I-1 to I-8 of the H15 and H15 Enhanced only.)
H_1 x HDMI 2.0 + 1x DP 1.2 input card 1x HDMI 2.0 + 1x DP 1.2
H_1 x HDMI 2.0 input card 1x HDMI 2.0
H_1 x DP 1.2 input card 1x DP 1.2
H_2 x HDMI 2.0 input card 2x HDMI 2.0
(This card can be installed into the slots from I-1 to I-8 of the H15 and H15 Enhanced only.)
H_2 x RJ45 IP input card 2x RJ45 Ethernet ports
H_4 x 3G SDI input card 4x 3G SDI
H_1 x 12G SDI input card 1x 12G SDI IN, 1x 12G SDI LOOP
H_2 x CVBS + 2xVGA input card 2x CVBS + 2x VGA
H_2 x DP1.1 input card 2x DP1.1
H_4 x VGA input card 4x VGA
H_2 x Audio input + 2x Audio output card 2x Audio inputs + 2x Audio outputs
H_4 x HDBaseT input card 4x RJ45 Ethernet ports
H_STD I/O card 2x COM, 1x ETHERNET, 3x I/O, 3x RELAY OUT, 3x IR OUT
Optional Output Cards Output Card Connectors and Qty
H_4 x DVI output card 4x DVI
H_4 x HDMI output card 4x HDMI 1.4
H_1 x HDMI 2.0 output card 2x HDMI 2.0
H_16 x RJ45 + 2xfiber sending card 16x RJ45 Ethernet ports + 2x OPT ports
H_4 x fiber sending card 4x OPT ports
H_20 x RJ45 sending card 20x RJ45 Ethernet ports
H_4 x 3G-SDI output card 4x 3G-SDI
H_4 x HDBaseT output card 4x RJ45 Ethernet ports
H_2 x RJ45 + 1x HDMI 1.3 preview card 2x RJ45 Ethernet ports + 1x HDMI 1.3
